What is Configure Proxy?

The term “configure proxy” refers to proxy configuration settings that define how your device connects to the internet through an intermediary server. This network setting appears across different devices – computers, smartphones, and tablets – typically when connecting to corporate or educational networks.

You’ll encounter proxy configuration when connecting to corporate networks, accessing educational institution resources, using certain security applications, or setting up specialized network environments. The configuration process requires specific details from your network administrator or service provider to ensure your device can properly communicate through the proxy server and access network resources.

Understanding proxy configuration is important because incorrect settings will prevent internet access. However, you can always restore your connection by disabling the proxy settings if needed.

Understanding Proxy Configuration

The basic components of proxy configuration include three essential elements you’ll need to set up your connection correctly. Let’s examine each one:

Server Address

The proxy server address identifies where your internet traffic will be directed. Your network administrator will provide this as either a domain name (proxy.company.com) or a numeric IP address (192.168.1.100).

Port Number

Along with the server address, you’ll receive a port number. Common proxy ports include 8080 or 3128. This number must be entered exactly as provided – even a small typo will prevent your connection from working.

Authentication Method

Many networks require you to verify your identity through the proxy server. If authentication is required, you’ll need your username and password. These are often the same credentials you use to log into your work or school account.

Configuration Methods

You might encounter different ways to input this information:

1. Manual Configuration – You enter all proxy details yourself
2. Automatic Configuration – Your device gets proxy settings from a configuration file
3. Auto-Detection – Your device tries to detect proxy settings automatically from the network

Each method serves different needs but essentially does the same thing.

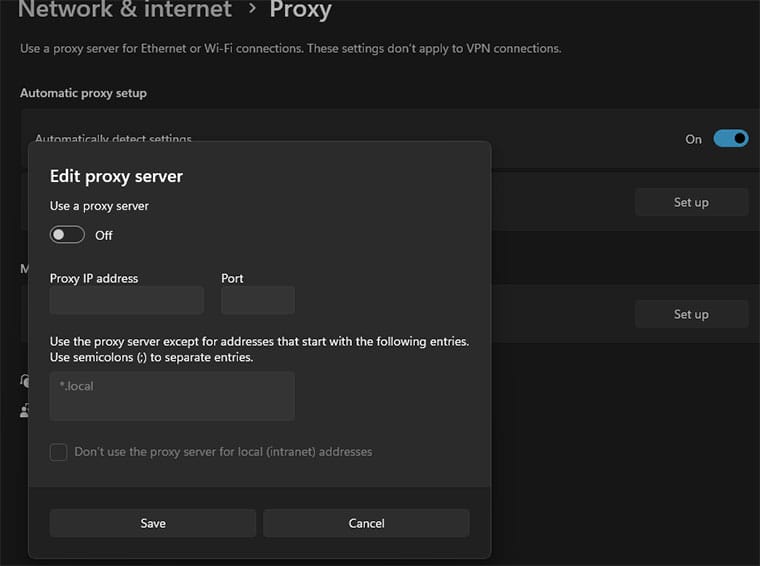

Manual Configuration

The most straightforward way to set up a proxy. You’ll need to enter specific details provided by your network administrator or proxy service:

• Server address and port number
• Username and password (if required)
• Any bypass rules for local addresses

This method gives you complete control but requires updating settings manually if anything changes.

Automatic Configuration

Often used in larger organizations, this method uses a PAC (Proxy Auto-Configuration) file. This special file contains instructions that tell your device which proxy to use for different web addresses. Your device only needs the URL where this file is located.

For example, a PAC file might tell your device to:

• Use one proxy for international websites
• Use a different proxy for local websites
• Connect directly to certain addresses without using any proxy

Auto-Detection

The simplest but least reliable method. Your device searches the network for proxy settings using a protocol called WPAD (Web Proxy Auto-Discovery). This method:

• Requires no manual setup
• Works automatically on new networks
• May not find the correct settings on all networks

Manual configuration typically serves individual users who don’t need to change their proxy settings often. Automatic configuration works well for large organizations that need flexible proxy rules, while auto-detection is ideal for devices that frequently connect to different networks.

When You Need to Configure a Proxy

While some users might never need to adjust these settings, there are specific situations where proxy configuration becomes mandatory for network access or security purposes.

Corporate Networks

Most organizations use proxy servers to secure and monitor their network traffic. When joining a corporate network, you’ll receive proxy configuration details from your IT department. This setup ensures you can access both internal resources and external websites while adhering to security policies.

School Networks

Schools and universities implement proxy configurations to manage network resources and control access. Students and staff must configure these settings to access educational materials and online resources through the institution’s network infrastructure.

Development and Testing

Software developers configure proxies when testing applications or analyzing network behavior. This configuration enables proper testing of applications across different network conditions.

Network Security Tools

Certain security applications require proxy configuration to inspect network traffic for potential threats. These tools scan incoming and outgoing data to prevent malware infiltration and protect sensitive information.

Geographic Access

Some services restrict access based on location. Proxy configuration allows traffic to be routed through specific geographic locations to access these region-restricted resources.

Privacy Protection

Users concerned about online privacy can configure proxies to mask their browsing activity. However, this requires careful consideration of proxy server reliability and security protocols.

Common Configuration Settings

When configuring a proxy, you’ll encounter several standard settings that control how your device connects through the proxy server. Understanding these settings helps you make the right choices for your needs.

HTTP Proxy

This is the most common proxy setting that handles regular web browsing traffic. When you configure an HTTP proxy, all your web requests first go through this proxy before reaching websites. Most basic internet browsing uses this type of connection. These settings are found in different places depending on your device – for example, if you’re using an iPhone, you might want to check out our iPhone proxy configuration guide for the exact steps in iOS.

HTTPS Proxy

Similar to HTTP proxy but specifically for secure websites (those starting with “https://”). Many organizations use the same server and port for both HTTP and HTTPS traffic, but some require separate settings for additional security.

Bypass Rules Implementation

These rules tell your device which websites should skip the proxy server and connect directly. Common examples include local network addresses and internal company websites. You might see this setting labeled as “bypass proxy for these hosts” or “exceptions.”

Authentication Parameters

Many proxy servers require login credentials to control access. This typically includes:

• Username: Often, your network or company login
• Password: Your authentication password
• Domain: Sometimes required in corporate environments

Connection Timeouts

Proxy configurations include timeout parameters that determine connection behavior. These settings establish how long your device attempts to establish proxy connections before terminating the request. While longer timeouts increase reliability, they may impact performance during network congestion.

Conclusion

Proxy configuration is a network setting you’ll encounter when joining certain Wi-Fi networks, particularly at work or school. While it might initially seem technical, it simply tells your device how to connect to the internet through your organization’s network.

If you’re asked to configure a proxy, you’ll need specific details from your network administrator: a server address, port number, and possibly login credentials. Remember that incorrect settings can prevent internet access, but you can always switch the proxy off to restore your connection.

For step-by-step setup instructions on your specific device, check our configuration guides. If you run into problems, your IT support team or network administrator can provide the correct settings for your network.
